Description
Introduction

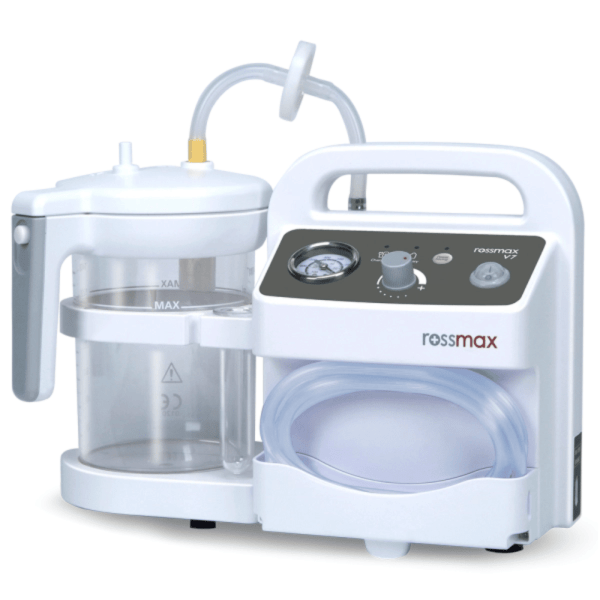

Suction unit (Aspirator) V7 can be used to remove unwanted fluids or infectious materials from the airway or respiratory support system in health care structures like hospitals and home care. The device generates suction (aspiration) which allows fluids to be extracted through connecting PVC tubing connected to a collection canister which retains the fluids until they can be properly disposed of.
This Suction unit (Aspirator) complies with the European regulations and bears the CE mark “CE 1639”. The quality of the device has been verified and conforms to the provisions of the EC council directive 93/42/EEC amended by 2007/47/EC (Medical Device Directive), Annex I essential requirements and applied harmonized standards. EN ISO 10079-1:2015 Medical suction equipment – Part 1: Electrically powered suction equipment.
It’s Powerful “Dual Power”
- High capacity of rechargeable Lithium-ion battery
- High performance pump delivers -600mmHg vacuum and 30 liter/min flow rate under normal mode and 25 liter/min under power-saving mode

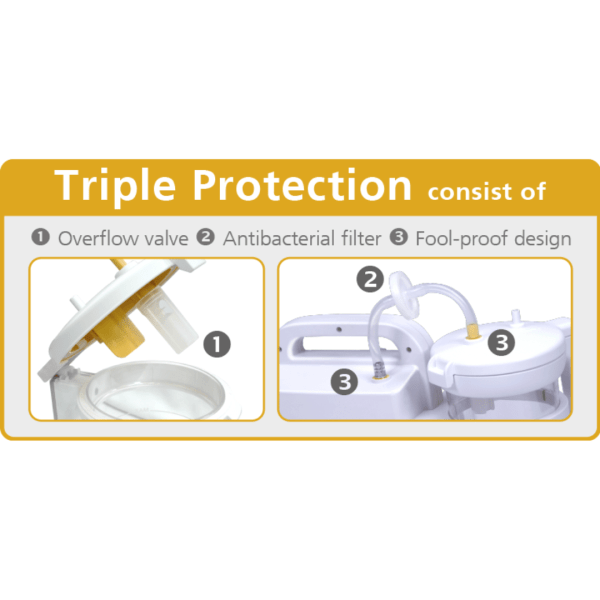

It’s Protected “Triple Protection”

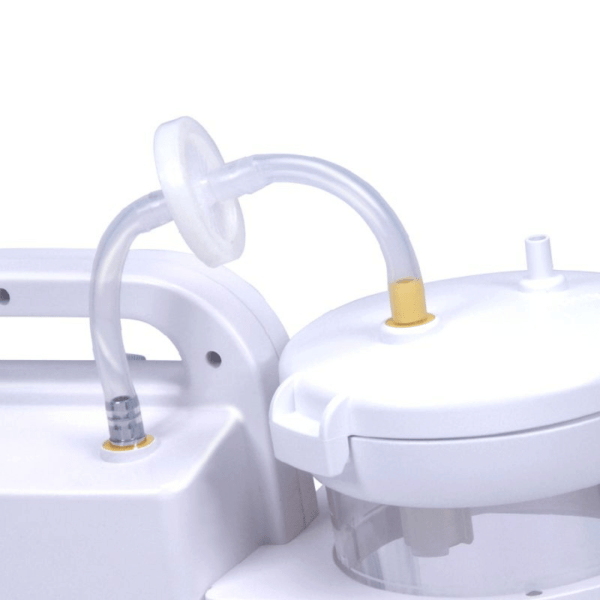

- Overflow valve plus antibacterial filter and fool-proof design that prevents back flow of fluid and airborne contaminants from entering the pump
It’s Convenient
- High performance light-weight lithium-ion battery offers approx. 45 mins of run time under normal mode and up to approx. 60 mins under power saving mode
- LED indication of battery condition makes V7 ideal for use on the go
- Easy to store using tubing holder, tubing depository and accessory compartment
It’s Ergonomic
- Comprehensive dashboard with ergonomic view angle ensures a smooth operation

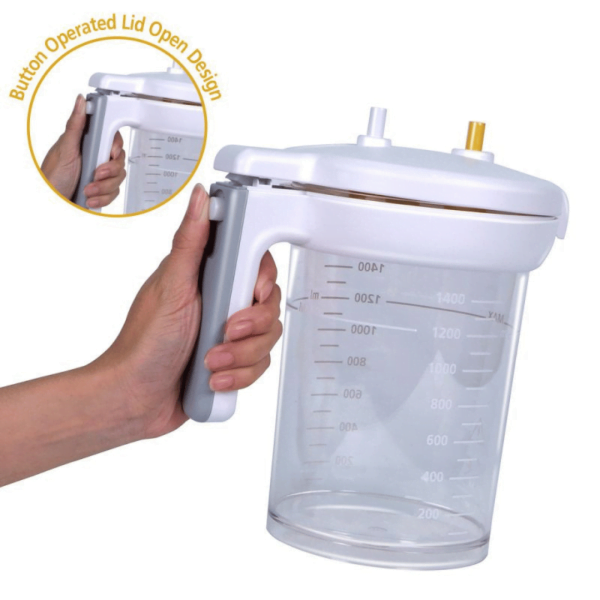

- Easy to open with button operated lid open design
Technical Specification
- Suction class: High Vacuum / High Flow
- Max vacuum @ pump inlet: -80 kPa/ -600 mmHg
- Max air flow @ pump inlet: 30L/min
- Economical mode/Power saving: 25L/min
- Collection Canister capacity: 1.4L (Polycarbonate, PC)
- Adaptor Input: AC 100-240V, 50/60Hz
- Adaptor Output: DC 12V 5A
- Power consumption: < 55W
- Battery working time: approx. 45 mins (normal use); approx. 60 mins. (power saving)
- Battery Charging time: 5 hours
