Description
Introduction

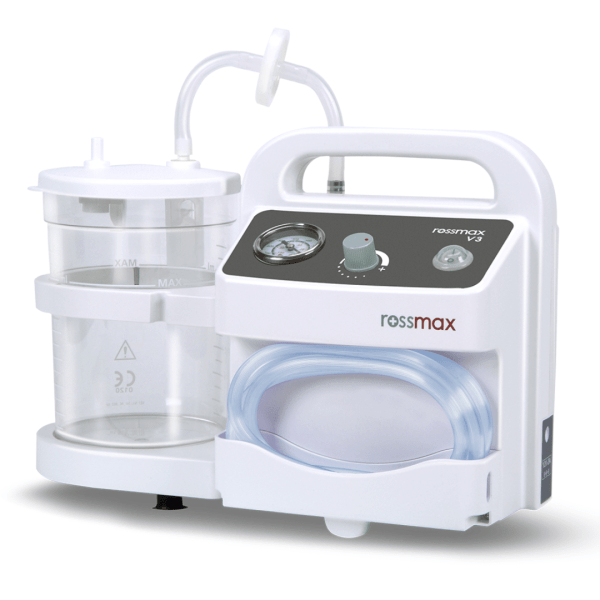

Suction unit (Aspirator) V3 can be used to remove unwanted fluids or infectious materials from the airway or respiratory support system in health care structures like hospitals and home care. The device generates suction (aspiration) which allows fluids to be extracted through connecting PVC tubing connected to a collection canister which retains the fluids until they can be properly disposed of.
This Suction unit (Aspirator) complies with the European regulations and bears the CE mark “CE 1639”. The quality of the device has been verified and conforms to the provisions of the EC council directive 93/42/EEC amended by 2007/47/EC (Medical Device Directive), Annex I essential requirements and applied harmonized standards. EN ISO 10079-1: 2015 Medical suction equipment – Part 1: Electrically powered suction equipment.
It’s Comfort
- High performance pump delivers -550mmHg vacuum and 16 liter/min flow rate

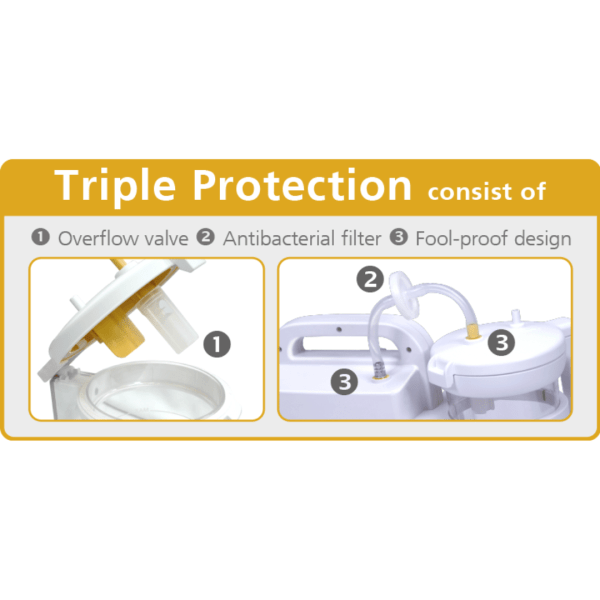

It’s Protected “Triple Protection”
- Overflow valve plus antibacterial filter and fool-proof design that prevents back flow of fluid and airborne contaminants from entering the pump
It’s Convenient
- Easy to store using tubing holder and accessory compartment

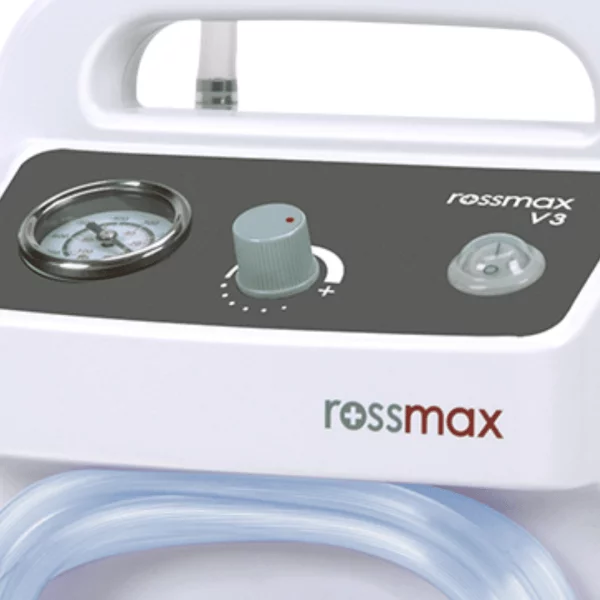

It’s Ergonomic
- Comprehensive dashboard with ergonomic view angle ensures a smooth operation
Technical Specification
- Suction class: High Vacuum / Low Flow
- Max vacuum @ pump inlet: -73 kPa/ -550 mmHg
- Max air flow @ pump inlet: 16 L/min
- Adaptor Input: AC 100-240V, 50/60Hz
- Adaptor Output: DC 12V 2.0A

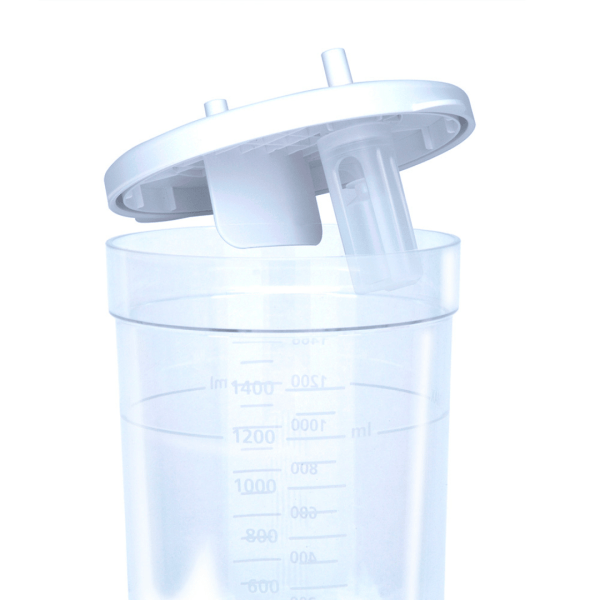

- Collection canister capacity: 1400ml (Polycarbonate, PC)
- Power Consumption: ≤ 24W
